Dimensions
H: 3.5” (90mm), W: 3.5” (90mm), D: 1.1” (28 mm)

Sensors Temperature
±1°F (0.5°C) display resolution
mmWave occupancy sensor
Relative humidity sensor ±2% accuracy

Wired Remote Sensor Compatibility
Temperature: 10K NTC (Type II or III), 20K NTC
Occupancy: NO or NC type

Display
2.4” IPS display (320 x 240 resolution)

Electrical Ratings
Power source: 19-30 VAC @50/60Hz, 40 VA, Class 2 or SELV
Output Rating: 1.0A resistive load per terminal, 5.0A resistive load combined total
Wire: Solid 18-22AWG, Stranded 20-22 AWG

Power Consumption
120mA at 24VAC

Temperature Range
Operating Range: 14OF to 122OF (-10OC to 50OC)
Heat Set Range: 45OF to 90OF (7OC to 32OC)
Cool Set Range: 60OF to 80OF (15.5OC to 26.5OC)

Environmental Limits
Moisture and Dust: IP20
Humidity: 20% to 95% non-condensing

Certifications
WIFI 802.11 B/G/N-compliant (2.4GHz)
Bluetooth 5

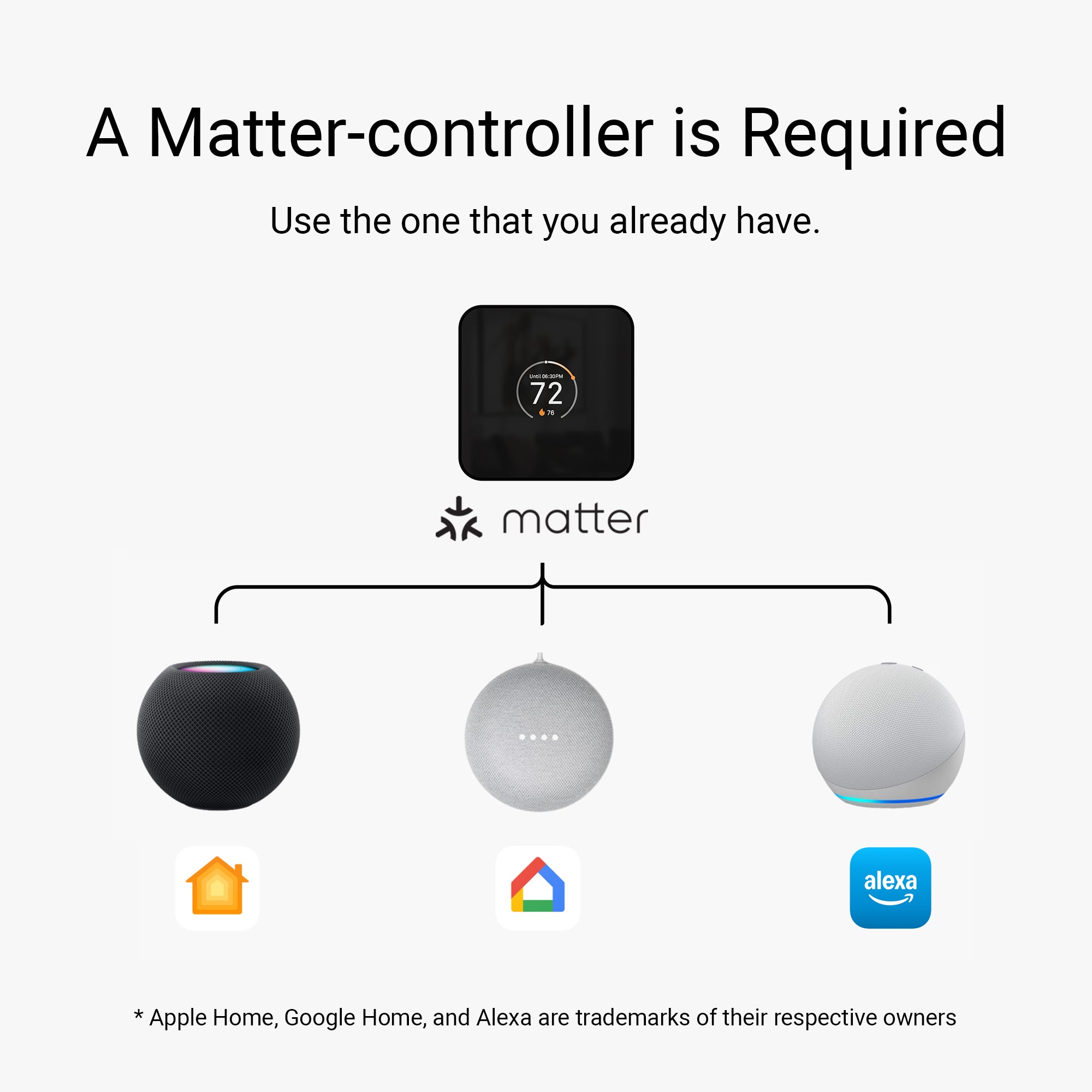

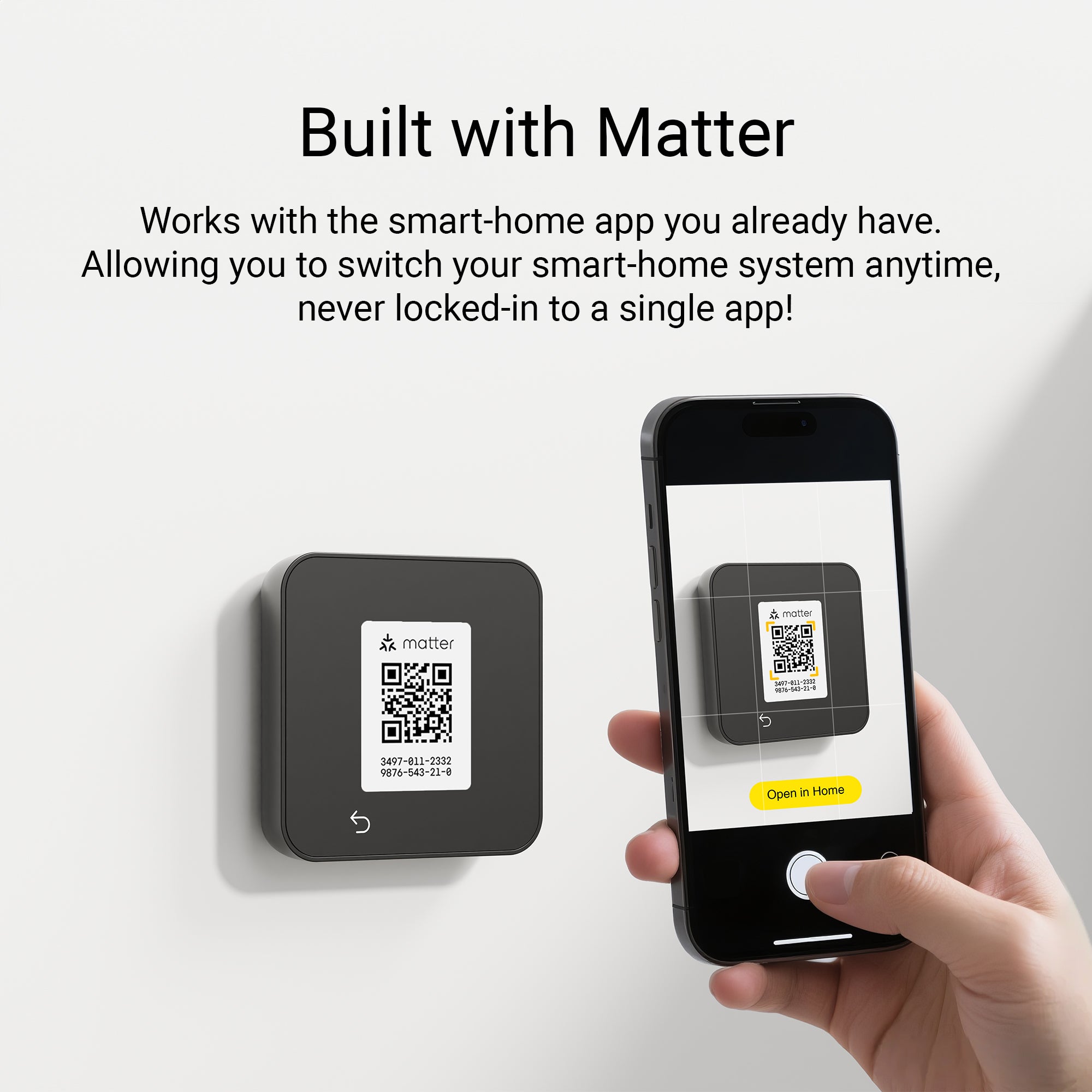

Matter 1.4 certified
FCC

Conventional: Up to 2 heat, 2 cool
Heat pump: Up to 4 heat, 2 cool
PTAC: Conventional or Heat pump
Fan coil: Binary output 2-pipe or 4-pipe

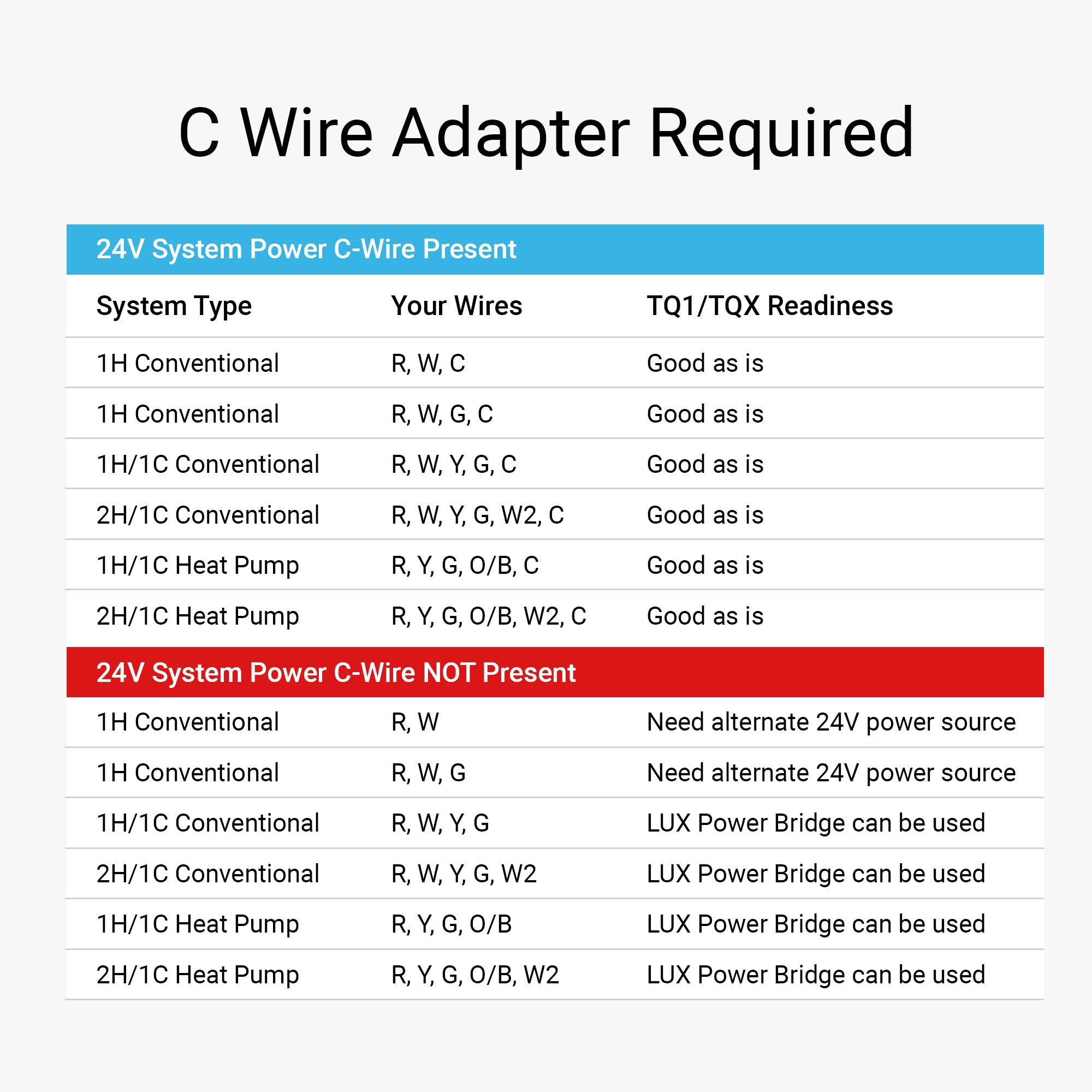

Power: C-wire or LUX Power Bridge (included)

Additional compatibility
3-wire zone valve (coming soon)
Millivolt heating
Up to 2 auxiliary outputs: Humidification, dehumidification or mechanical ventilation

Not compatible with 120V/240V line voltage systems

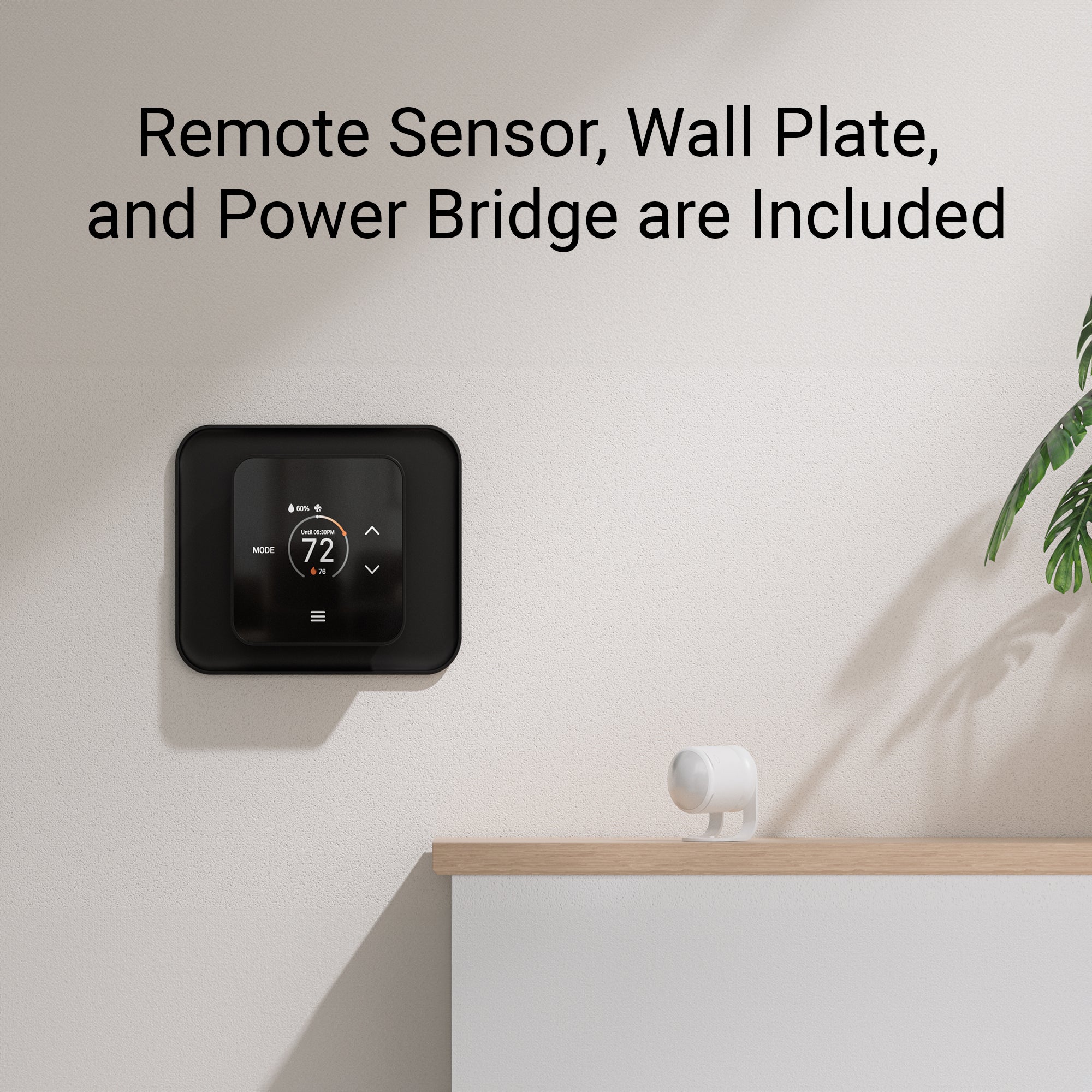

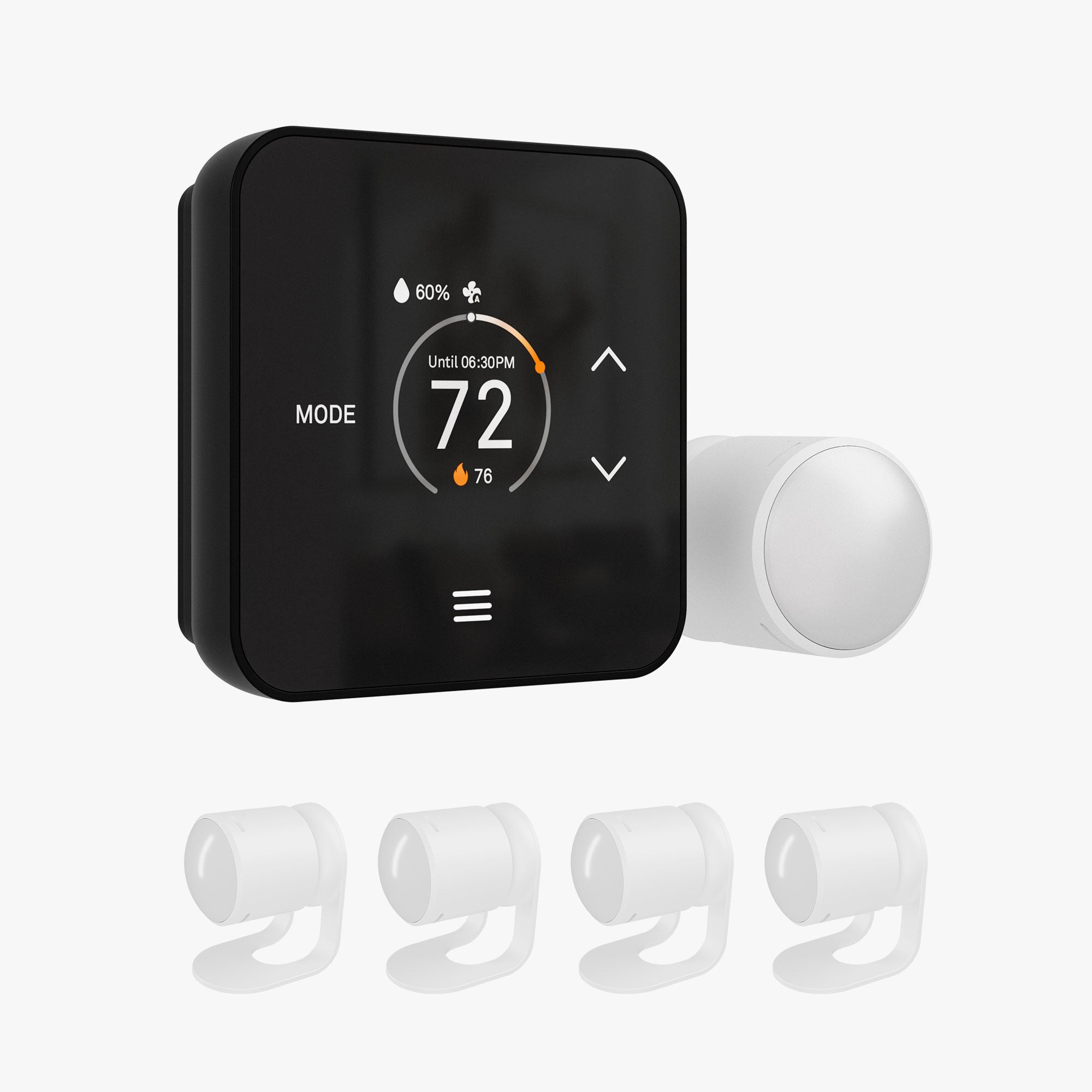

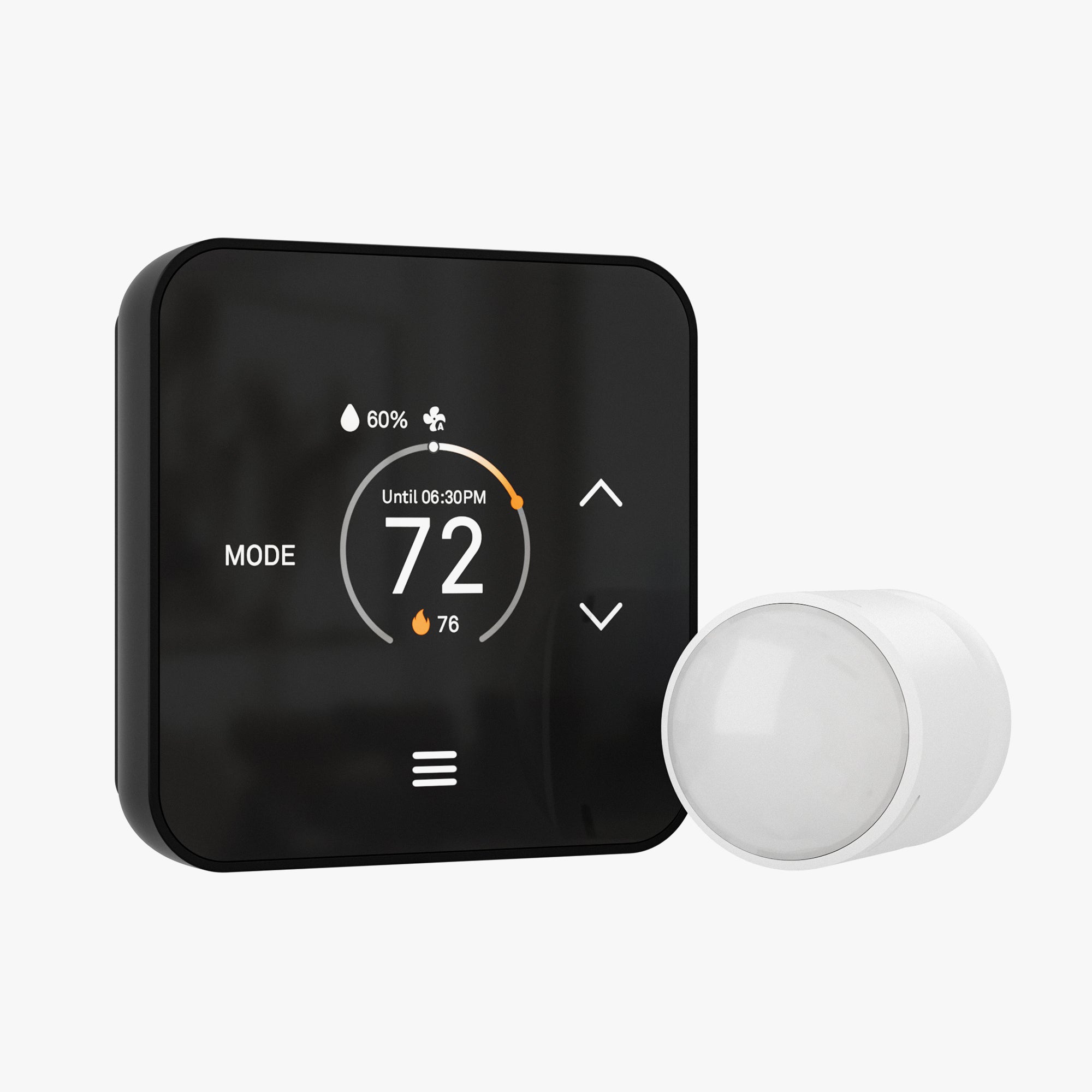

TQX Smart Thermostat x 1

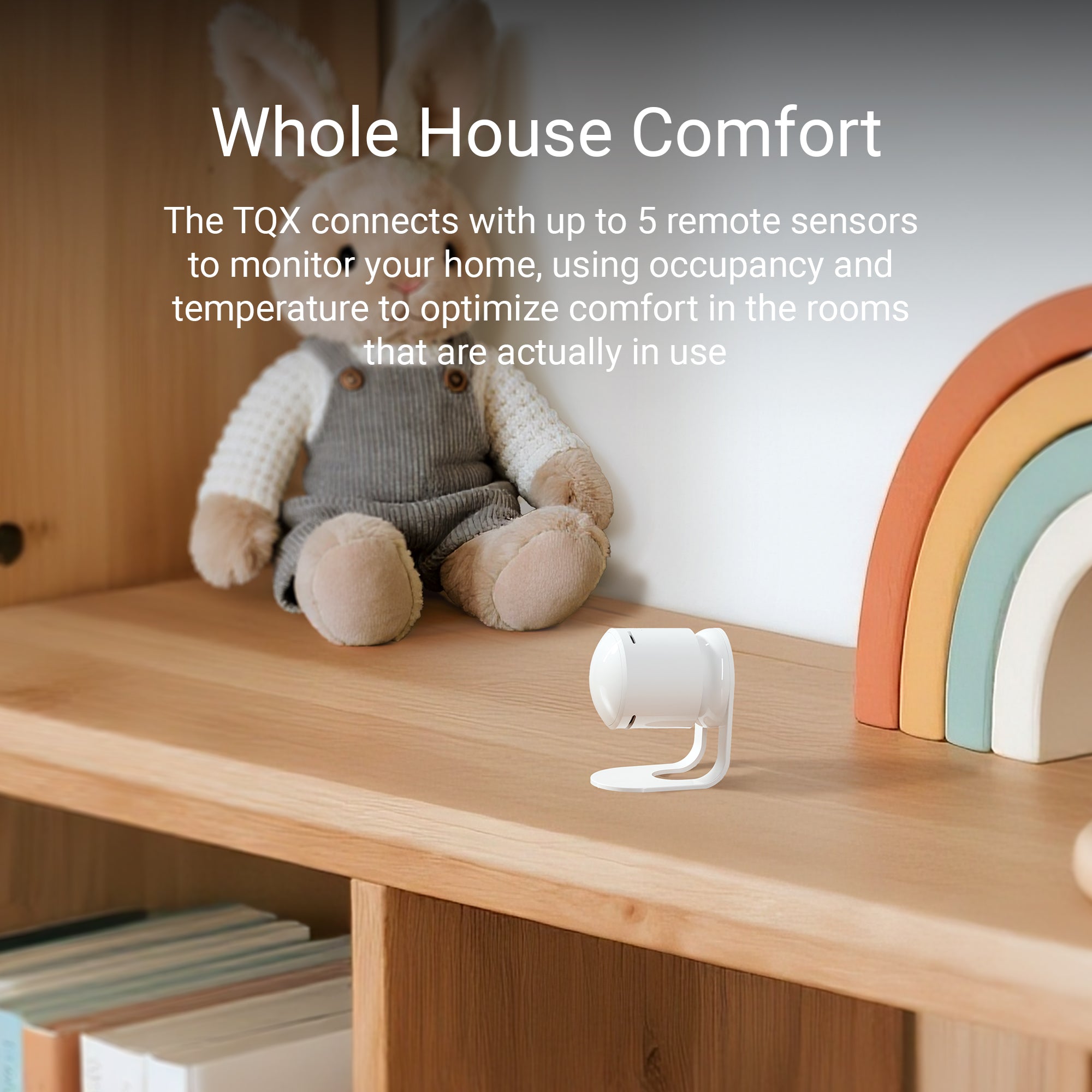

Remote Sensor x 1
Lux Power Bridge x 1
Trim Plate x 1 and Mounting Hardware
Instruction x 1
Master Carton x 4 units
