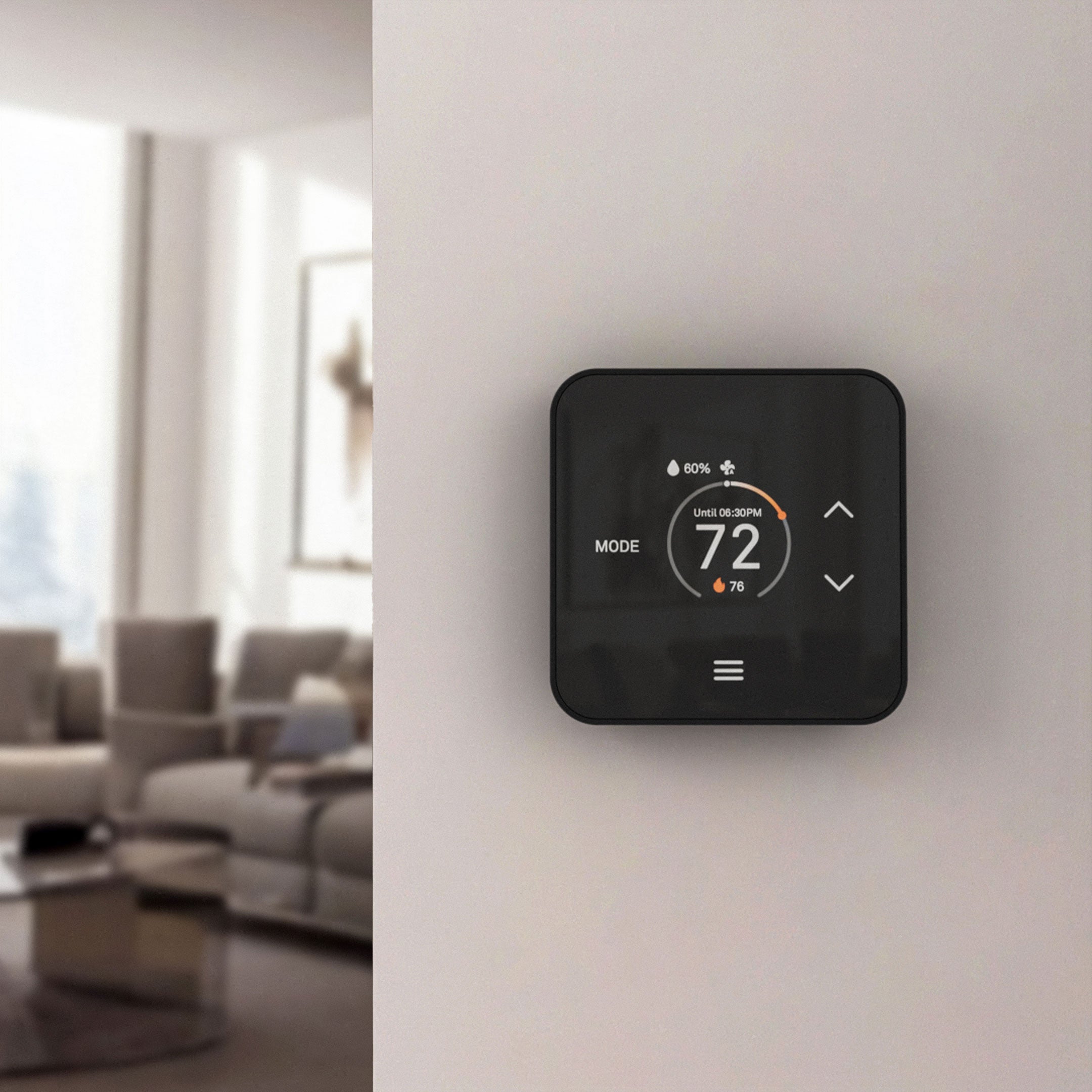

LUX TQ1 Smart thermostat on a wall with text about saving on energy bills and reduced costs.

LUX TQ1 Smart thermostat built with Matter and setup with QR code.

Person holding a smartphone with a smart thermostat app displayed, emphasizing remote control and scheduling.

LUX TQ1 Smart thermostat with voice control and a small screen displaying temperature.

LUX TQ1 Smart thermostat - quick installation.

Table detailing C wire adapter requirements for various system types with color-coded wires.

LUX TQ1 Smart thermostat compatibility chart with Matter controller requirement

TQ1 Matter Smart Thermostat - Black

Name: TQ1 Matter Smart Thermostat - Black
Brand: Lux Products
SKU: TQ1-BL-L04
Price: 79.99 USD
Availability: InStock

$79.99 ~~$94.99~~

Sign up to our mailing list to get 10% off

Smart home made simple. Experience a Matter-enabled thermostat that fits seamlessly into your connected home. Everything you need for smarter comfort, without the extra complexity.

Matter Over Wi-Fi: Connect directly to Apple Home, Google Home, Alexa, SmartThings, and more by scanning a QR code.
Smart Scheduling on Device/Remotely: Customize heating and cooling around your daily routine for comfort that's always on your schedule.
No Extra App Required: Skip the extra downloads and manage everything from one familiar app.
Easy to Install. Built to Last: Simple DIY setup with broad compatibility across conventional, heat pump, PTAC, and fan coil systems.

Color

Quantity

Buy More Save More

Save 10% when you spend $300+
Save 15% when you spend $500+

You can mix and match any products across the store.

Free shipping on TQ Smart Thermostats

Product Specs

Dimensions
H: 3.5” (90mm), W: 3.5” (90mm), D: 1.1” (28 mm)

Sensors Temperature
±1OF (0.5OC) display resolution

Wired Remote Sensor Compatibility
Temperature: 10K NTC (Type II or III), 20K NTC
Occupancy: NO or NC type

Display
2.4” IPS display (320 x 240 resolution)

Electrical Ratings
Power source: 19-30 VAC @50/60Hz, 40 VA, Class 2 or SELV
Output Rating: 1.0A resistive load per terminal, 5.0A resistive load combined total
Wire: Solid 18-22AWG, Stranded 20-22 AWG

Power Consumption
120mA at 24VAC

Temperature Range
Storage Range: -4OF to 140OF (-20OC to 60OC)
Operating Range: 14OF to 122OF (-10OC to 50OC)
Display Range: 32OF to 104OF (0OC to 40OC)
Heat Set Range: 45OF to 90OF (7OC to 32OC)
Cool Set Range: 60OF to 80OF (15.5OC to 26.5OC)

Environmental Limits
Moisture and Dust: IP20
Humidity: 20% to 95% non-condensing

Certifications
WIFI 802.11 B/G/N-compliant (2.4GHz)
Bluetooth 5|
Matter 1.4 certified
FCC

Compatible with

Conventional: Up to 2 heat, 2 cool
Heat pump: Up to 3 heat, 2 cool
PTAC: Conventional or Heat pump
Fan coil: Binary output 2-pipe or 4-pipe
Power: C-wire or LUX Power Bridge (sold separately)
Additional compatibility: Millivolt heating

Not compatible with 120V/240V line voltage systems

What's in the Box

TQ1 Smart Thermostat x 1
Mounting Hardware x 1
Wire Label x 1
Instruction x 1
Master Carton x 4 units

User Manuals

Spec Sheet

User Manual

TQ1 Smart Thermostat

Save more on your energy Bill

Built with Matter to work with all major smart-home ecosystems

Seamless local and remote control

The easiest to use connected thermostat


Save On Your Energy Bill , Efficiently.

Save money and energy with smart features built for efficiency

Energy use tracking
Graphical indicator showing the heating or cooling effort required
Circulator fan timer that improves comfort without running your system continuously

Built with Matter to Work with All Major Smart-home Ecosystems

Works with the smart-home app you already have. Allowing you to switch your smart-home system anytime, never locked-in to a single app!

Learn More

Seamless Local and Remote Control

Connects through your existing smart speaker or Matter controller to smart-home app you already have. Setup and change schedule, turn on and off anytime anywhere in the app.

The Easiest to Use Connected Thermostat

All system configuration done at device, no app required

Create your own schedule to suit your needs and locally stored 7 days schedule

Keypad lock-out with numeric PIN code

Works with Leading Smart Home Ecosystems

Amazon Alexa

Apple Home

Google Home

Samsung SmartThings

Amazon, Amazon Alexa, Apple, Apple Home, Google, Google Home, Samsung, Samsung SmartThings are trademarks of their respective owners

Over a Century of Comfort Innovation

Since 1914, LUX has helped homeowners and HVAC professionals control indoor comfort. TQX brings that trusted experience into the Matter era.

10 Million Thermostats in Use
Trusted Since 1914
Compatible with Most HVAC Systems
Automatic Software Updates
3-Year Limited Warranty

Why Choose TQ1 Smart Thermostat

Feature	TQ1 Smart Thermostat	Ecobee Essential	Sensi
Smart Home Standard	Matter over Wi-Fi	Proprietary Wi-Fi	Propriety Wi-Fi
No Extra Manufacture App Needed	No. Uses your preferred smart home app	Requires ecobee app	Requires Sensi app
Keypad Lock	PIN lock	No dedicated PIN lock
Amazon Alexa	Native
Apple Home	Native	HomeKit	HomeKit
Google Home	Native
Samsung SmartThings	Native
Remote Control	Through Amazon Alexa, Apple Home, Google Home, Samsung SmartThings	Through ecobee app	Through Sensi app
Scheduling	On device + flexible Automations within all smart home assistant mobile apps	Through ecobee app	Through Sensi app
HVAC Compatibility	Up to 3H/2C heat pump, 2H/2C conventional, PTAC, fan coil, compatible with most all systems with a C-wire to power thermostat	Standard HVAC & heat pumps (more limited specialty system support)	Conventional & heat pump systems

Set up in minutes with easy, on-screen step-by-step instructions.
Easy connection using your existing wires.
Designed to fit any wall. Trim Plate sold separately, and can be used to cover any imperfections.

Setup in minutes
No C wire required
Designed to fit any wall

Watch the Installation Video

Dimensions
H: 3.5” (90mm), W: 3.5” (90mm), D: 1.1” (28 mm)
Sensors Temperature
±1OF (0.5OC) display resolution
Wired Remote Sensor Compatibility
Temperature: 10K NTC (Type II or III), 20K NTC
Occupancy: NO or NC type
Display
2.4” IPS display (320 x 240 resolution)
Electrical Ratings
Power source: 19-30 VAC @50/60Hz, 40 VA, Class 2 or SELV
Output Rating: 1.0A resistive load per terminal, 5.0A resistive load combined total
Wire: Solid 18-22AWG, Stranded 20-22 AWG
Power Consumption
120mA at 24VAC
Temperature Range
Storage Range: -4OF to 140OF (-20OC to 60OC)
Operating Range: 14OF to 122OF (-10OC to 50OC)
Display Range: 32OF to 104OF (0OC to 40OC)
Heat Set Range: 45OF to 90OF (7OC to 32OC)
Cool Set Range: 60OF to 80OF (15.5OC to 26.5OC)
Environmental Limits
Moisture and Dust: IP20
Humidity: 20% to 95% non-condensing
Certifications
WIFI 802.11 B/G/N-compliant (2.4GHz)
Bluetooth 5|
Matter 1.4 certified
FCC
Spec Sheet
User Manual
TQ1 Smart Thermostat x 1
Mounting Hardware x 1
Wire Label x 1
Instruction x 1
Master Carton x 4 units
Conventional: Up to 2 heat, 2 cool
Heat pump: Up to 3 heat, 2 cool
PTAC: Conventional or Heat pump
Fan coil: Binary output 2-pipe or 4-pipe
Power: C-wire or LUX Power Bridge (sold separately)
Additional compatibility: Millivolt heating
Not compatible with 120V/240V line voltage systems
