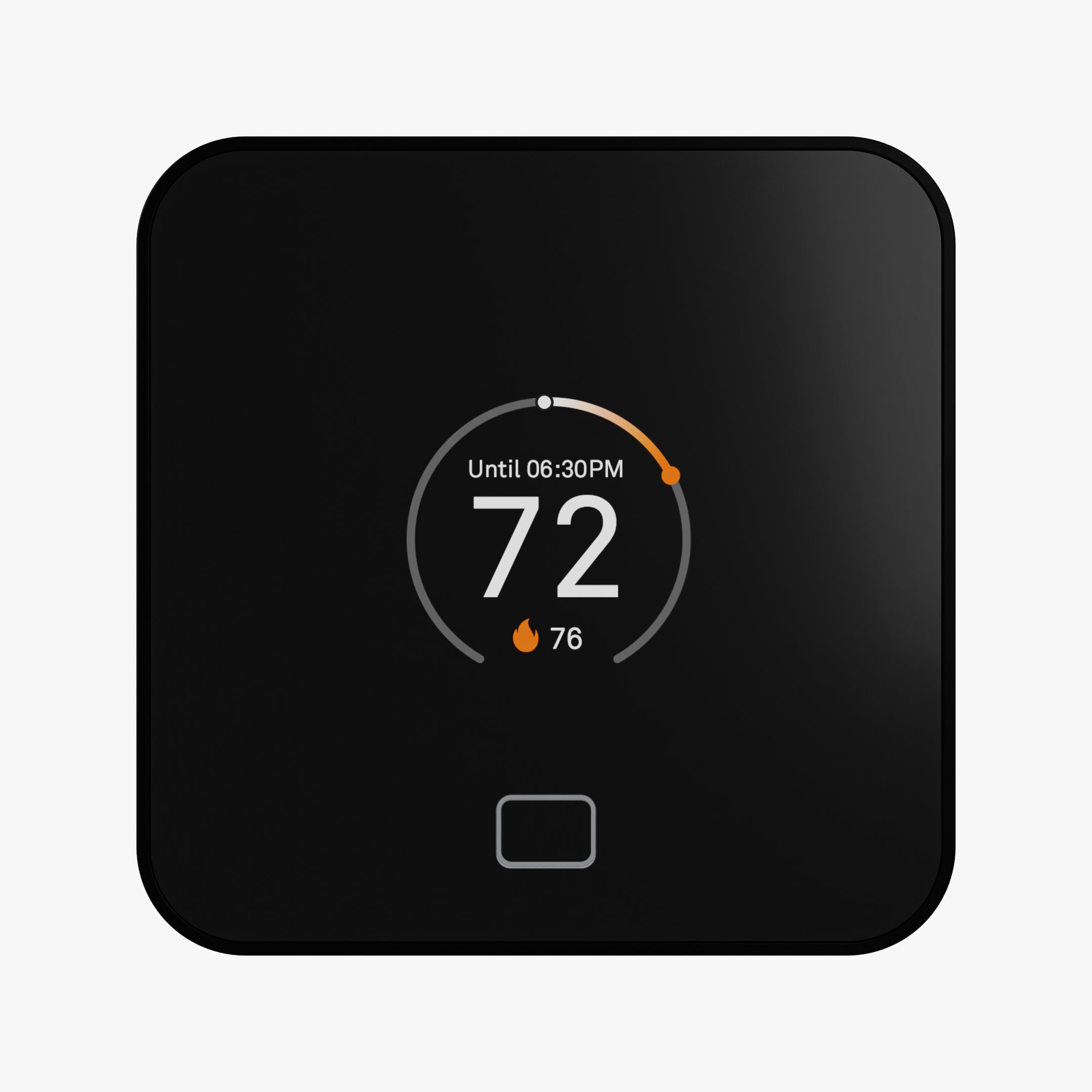

TQ1 Smart Thermostat
TQ1 Smart Thermostat - Black
$94.99
Stay Warm: Save $20 on TQ1. Discount auto-applied in cart.
Free shipping on TQ Smart Thermostats
Save more on your energy Bill
Built with Matter to work with all major smart-home ecosystems
Seamless local and remote control
The easiest to use connected thermostat

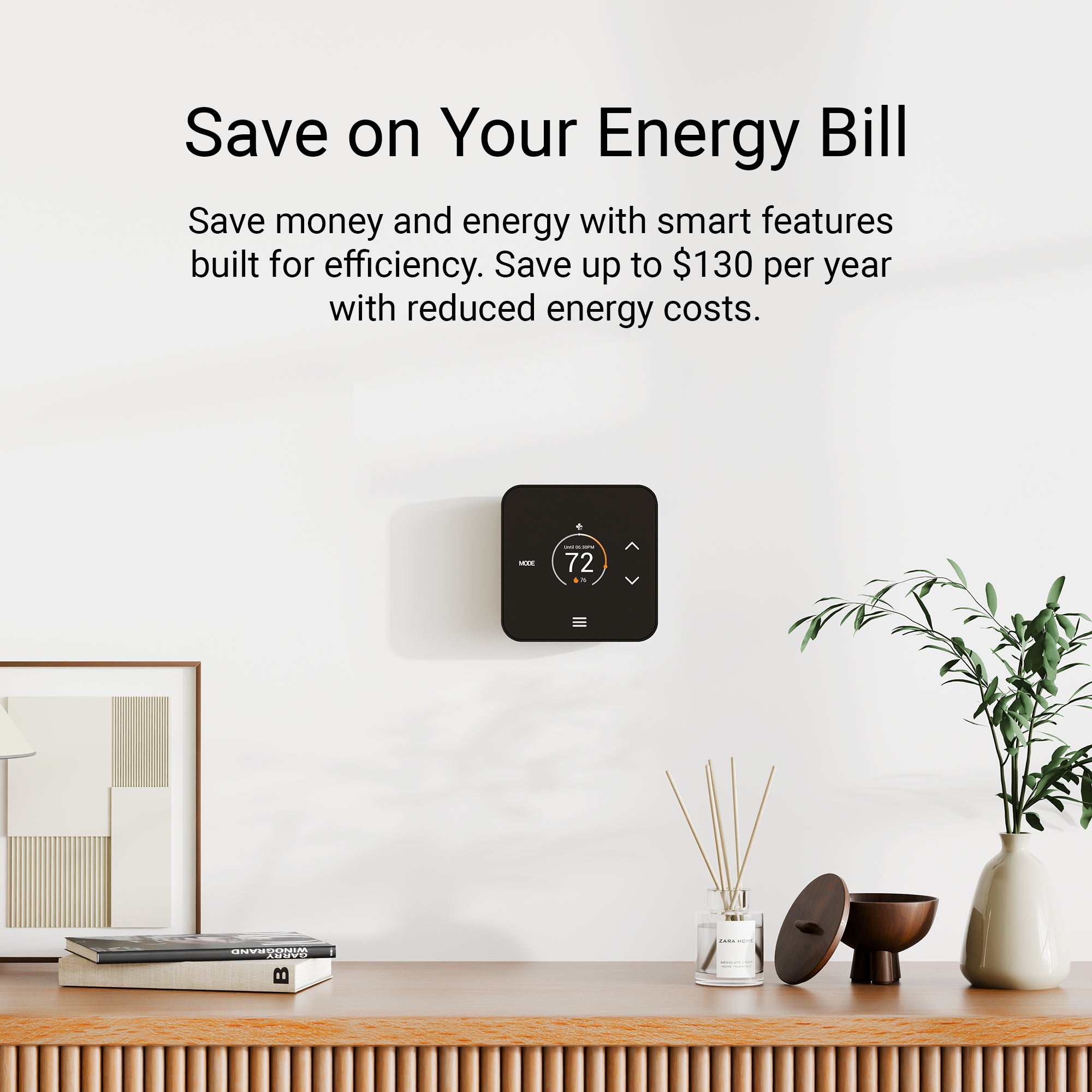

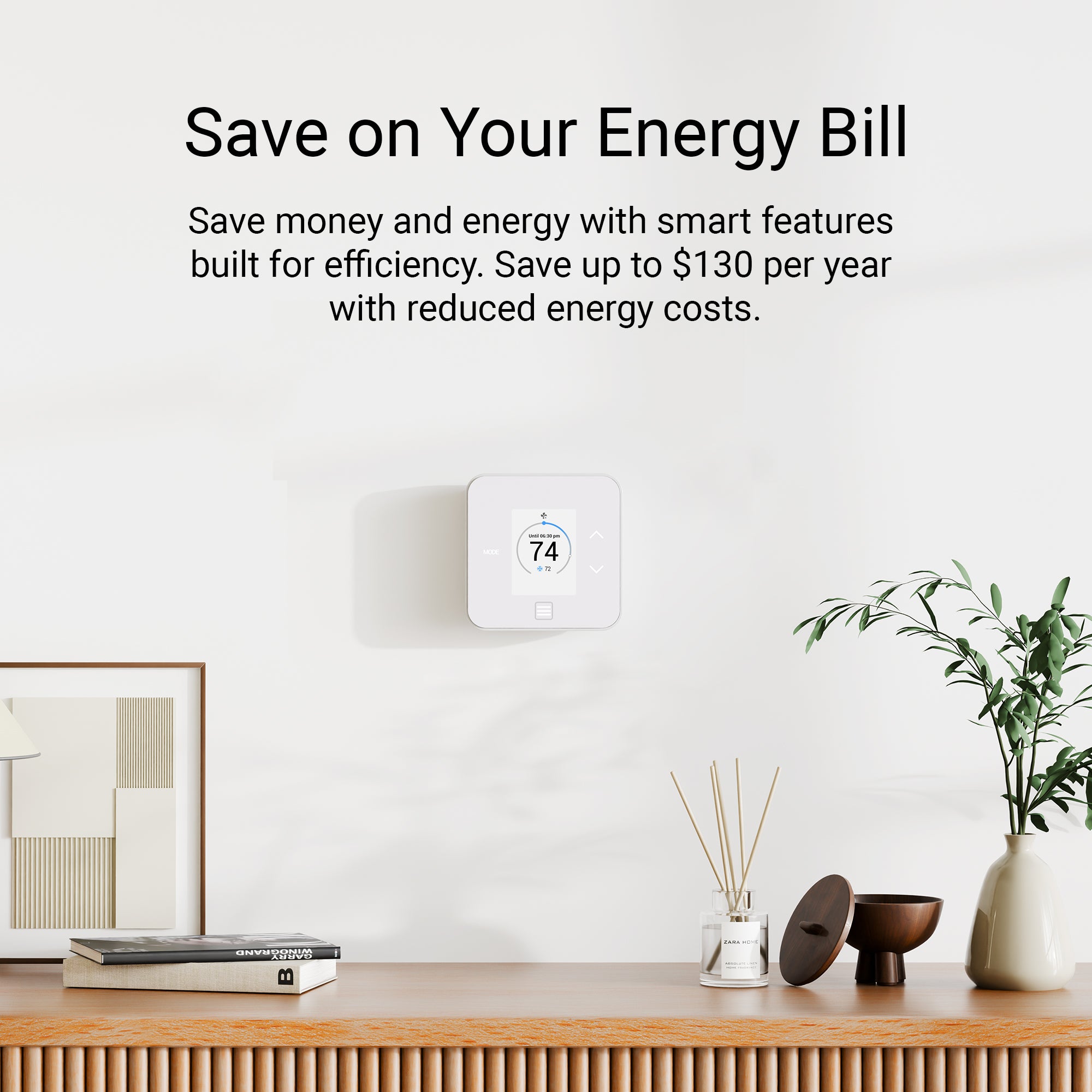

Save On Your Energy Bill, Efficiently.
Save money and energy with smart features built for efficiency
- Energy use tracking
- Graphical indicator showing the heating or cooling effort required
- Circulator fan timer that improves comfort without running your system continuously
Built with Matter to Work with All Major Smart-home Ecosystems
Works with the smart-home app you already have. Allowing you to switch your smart-home system anytime, never locked-in to a single app!

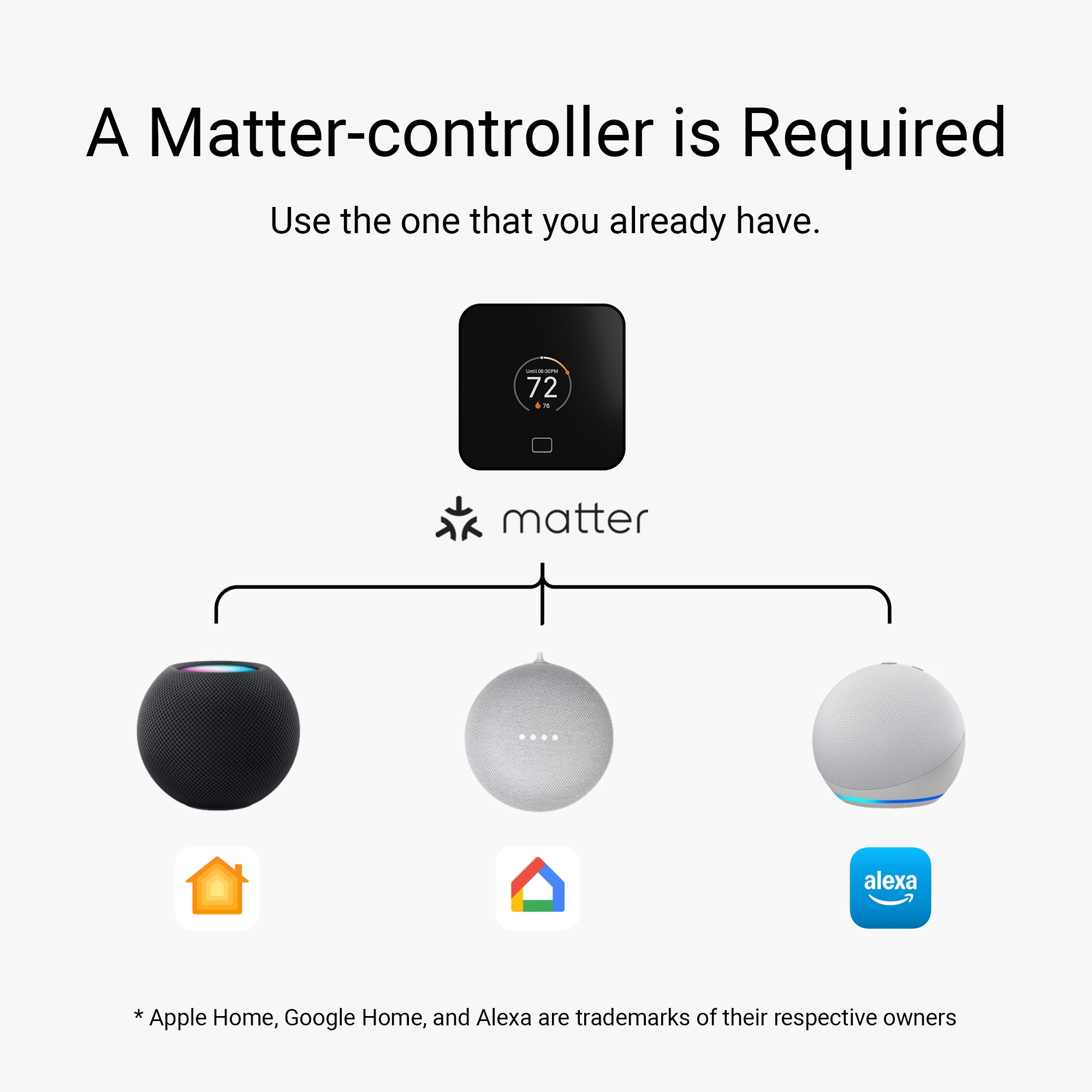

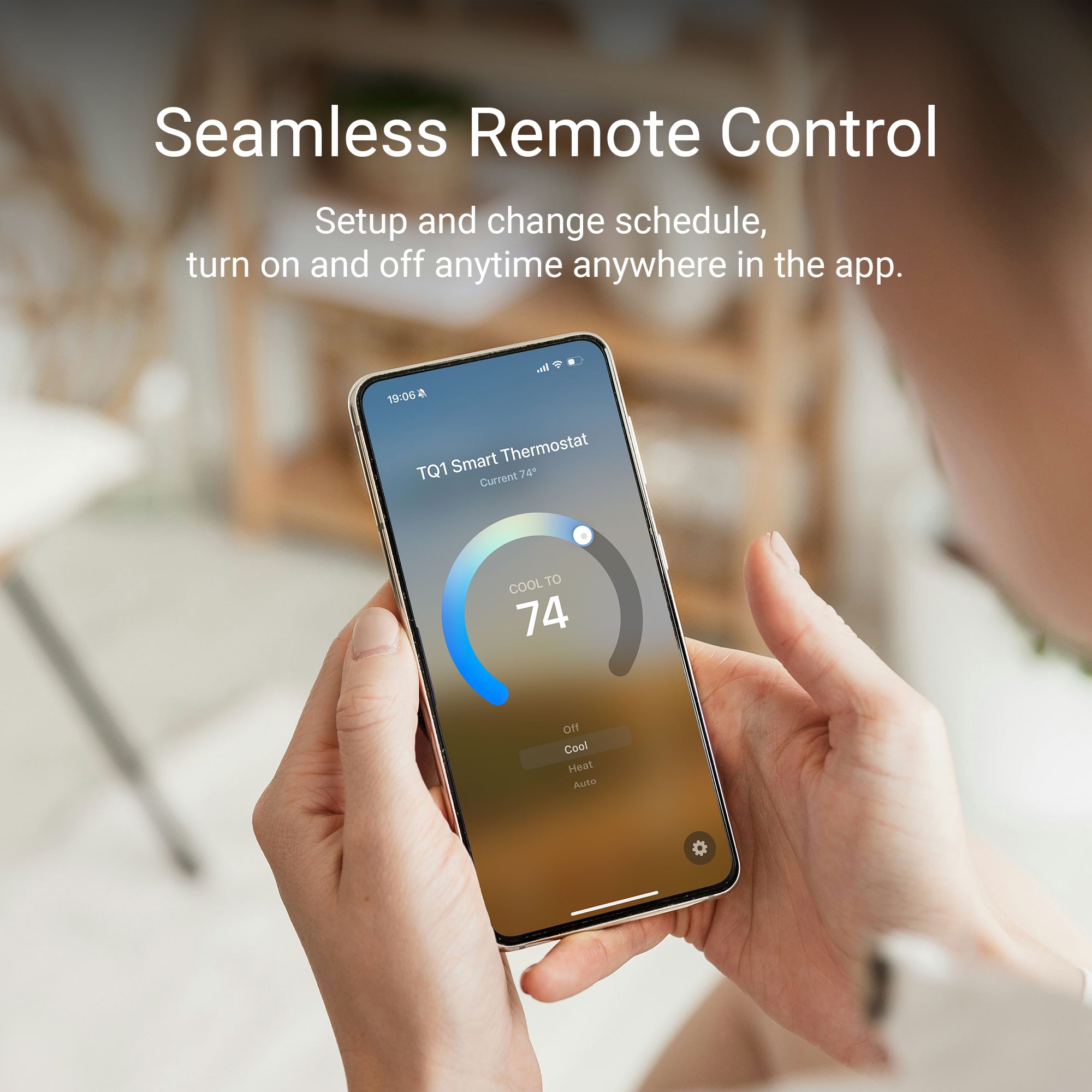

Seamless Local and Remote Control

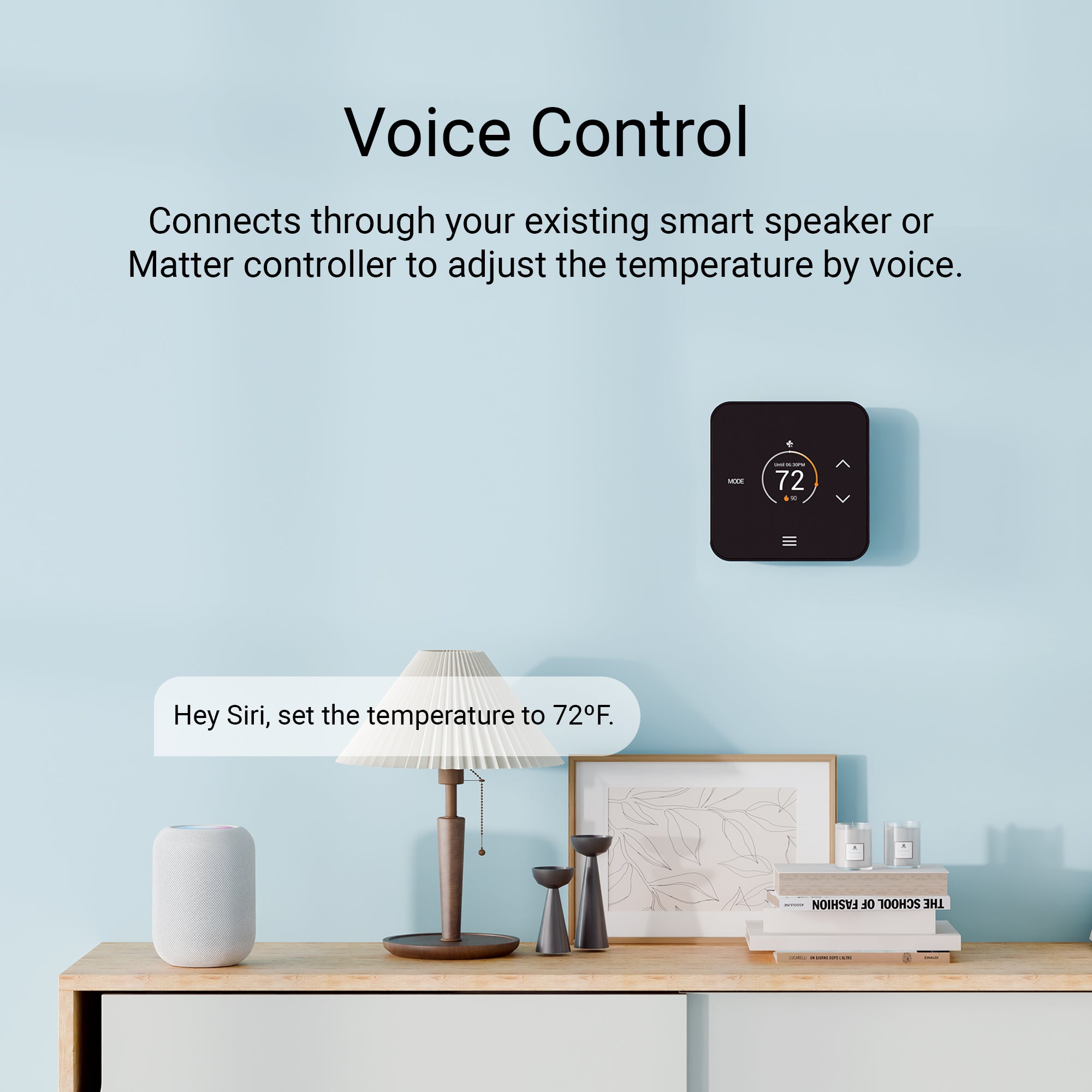

Connects through your existing smart speaker or Matter controller to smart-home app you already have. Setup and change schedule, turn on and off anytime anywhere in the app.

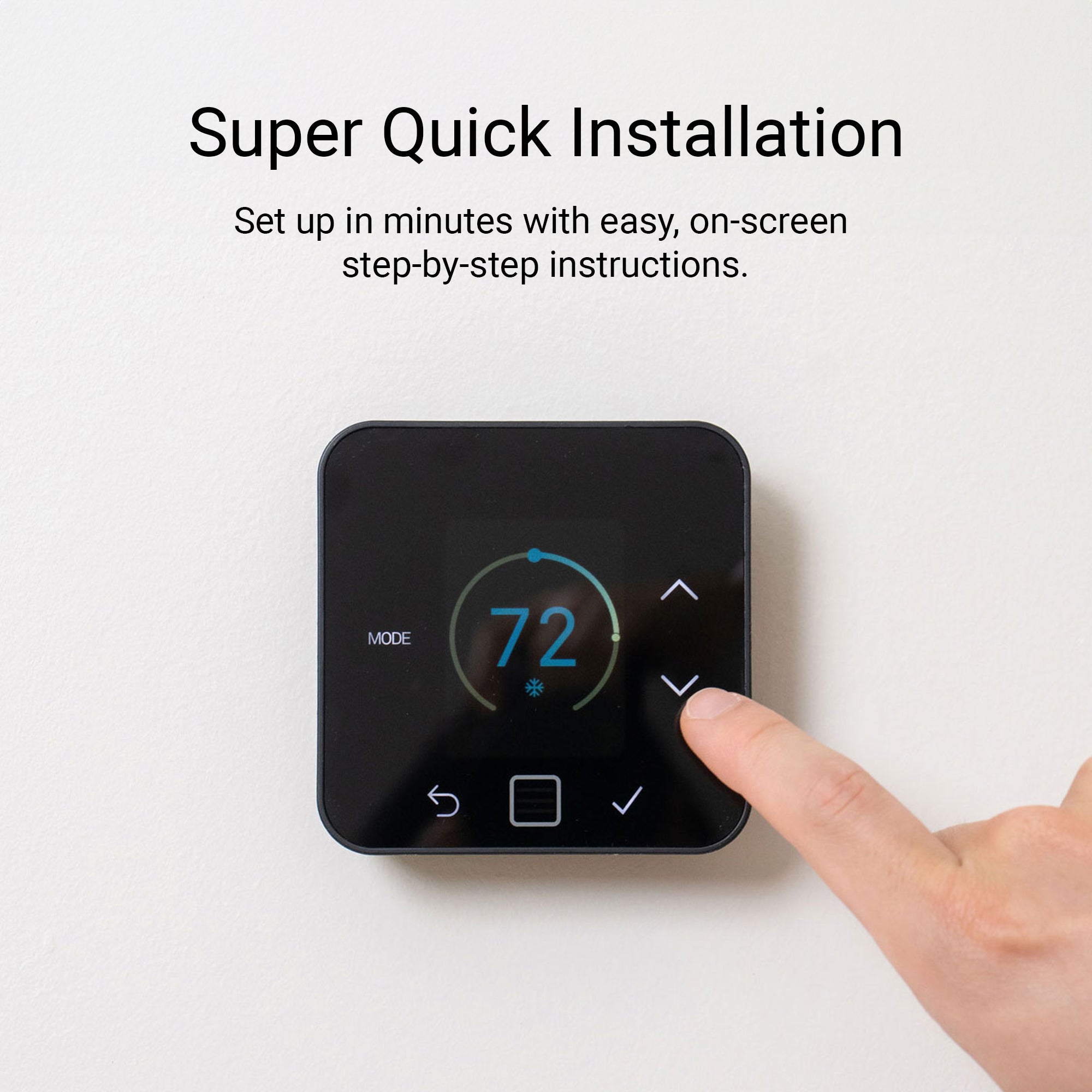

The Easiest to Use Connected Thermostat
All system configuration done at device, no app required
Create your own schedule to suit your needs and locally stored 7 days schedule
Keypad lock-out with numeric PIN code
See How TQ Smart Thermostats Works in Real Life
Product Specifications
-
Dimensions
H: 3.5” (90mm), W: 3.5” (90mm), D: 1.1” (28 mm)Sensors Temperature
±1OF (0.5OC) display resolutionWired Remote Sensor Compatibility
Temperature: 10K NTC (Type II or III), 20K NTC
Occupancy: NO or NC typeDisplay
2.4” IPS display (320 x 240 resolution)Electrical Ratings
Power source: 19-30 VAC @50/60Hz, 40 VA, Class 2 or SELV
Output Rating: 1.0A resistive load per terminal, 5.0A resistive load combined total
Wire: Solid 18-22AWG, Stranded 20-22 AWGPower Consumption
120mA at 24VACTemperature Range
Storage Range: -4OF to 140OF (-20OC to 60OC)
Operating Range: 14OF to 122OF (-10OC to 50OC)
Display Range: 32OF to 104OF (0OC to 40OC)
Heat Set Range: 45OF to 90OF (7OC to 32OC)
Cool Set Range: 60OF to 80OF (15.5OC to 26.5OC)Environmental Limits
Moisture and Dust: IP20
Humidity: 20% to 95% non-condensingCertifications
WIFI 802.11 B/G/N-compliant (2.4GHz)
Bluetooth 5|
Matter 1.4 certified
FCC -
TQ1 Smart Thermostat x 1
Mounting Hardware x 1
Wire Label x 1
Instruction x 1
Master Carton x 4 units -
Conventional: Up to 2 heat, 2 cool
Heat pump: Up to 3 heat, 2 cool
PTAC: Conventional or Heat pump
Fan coil: Binary output 2-pipe or 4-pipe

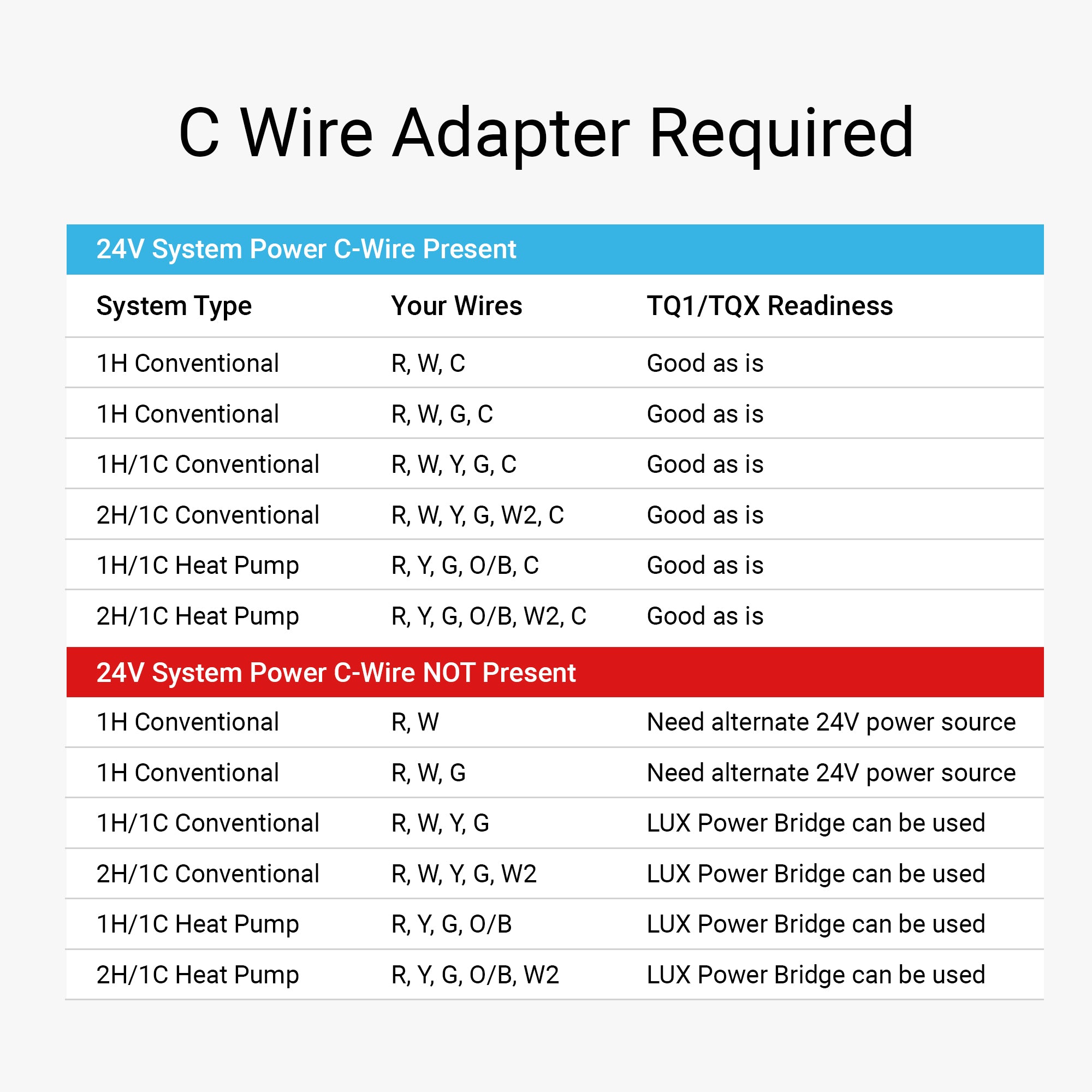

Power: C-wire or LUX Power Bridge (sold separately)
Additional compatibility: Millivolt heatingNot compatible with 120V/240V line voltage systems
Works with most HVAC systems
The Connected Thermostat That Thinks for You
